CPS4225/CPS4225CThree-way frequency and main speaker system

Products

Home> English> products> Digital Movie Stereo Sound Reproducing Equipment> Main Speakers>

CPS4225 and CPS4225C three-way speaker systems are suitable for movie halls with the projecting distance less than 16m. The bass system consists of one PW1501 woofer unit and direct-coupled box; the mid/treble system has PH2324 dual-way constant directivity horns; the midrange unit is PZ820 IF speaker unit, HF unit is PD2106 drive. CPS4225C has a built-in power prescaler in IF/HF unit.

technical parameters	CPS4225			CPS4225C
Frequency response	40-20KHz
Coverage angles	90°×50°(H×V)
Directivity factor	10
Directivity index	10dB
	LF unit	IF unit	HF unit	LF unit	IF unit	HF unit
Unit model	PW1501	PZ820&PH2324	PD2106&PH2324	PW1501	PZ820&PH2324	PD2106&PH2324
Rated impedance (bass/treble)	8Ω	8Ω	8Ω	8Ω	8Ω
Sensitivity (1m, 1W)	98dB	105 dB	110 dB	98dB	105 dB
Rated Input Power	300W	200 W	100 W	300W	200 W
Maximum input power	600W	400 W	200 W	600W	400 W
Maximum SPL	125.8dB	131 dB	134.8dB	125.8dB	131dB
Crossover frequency	600Hz/2500Hz			600Hz / Built-in:2500Hz

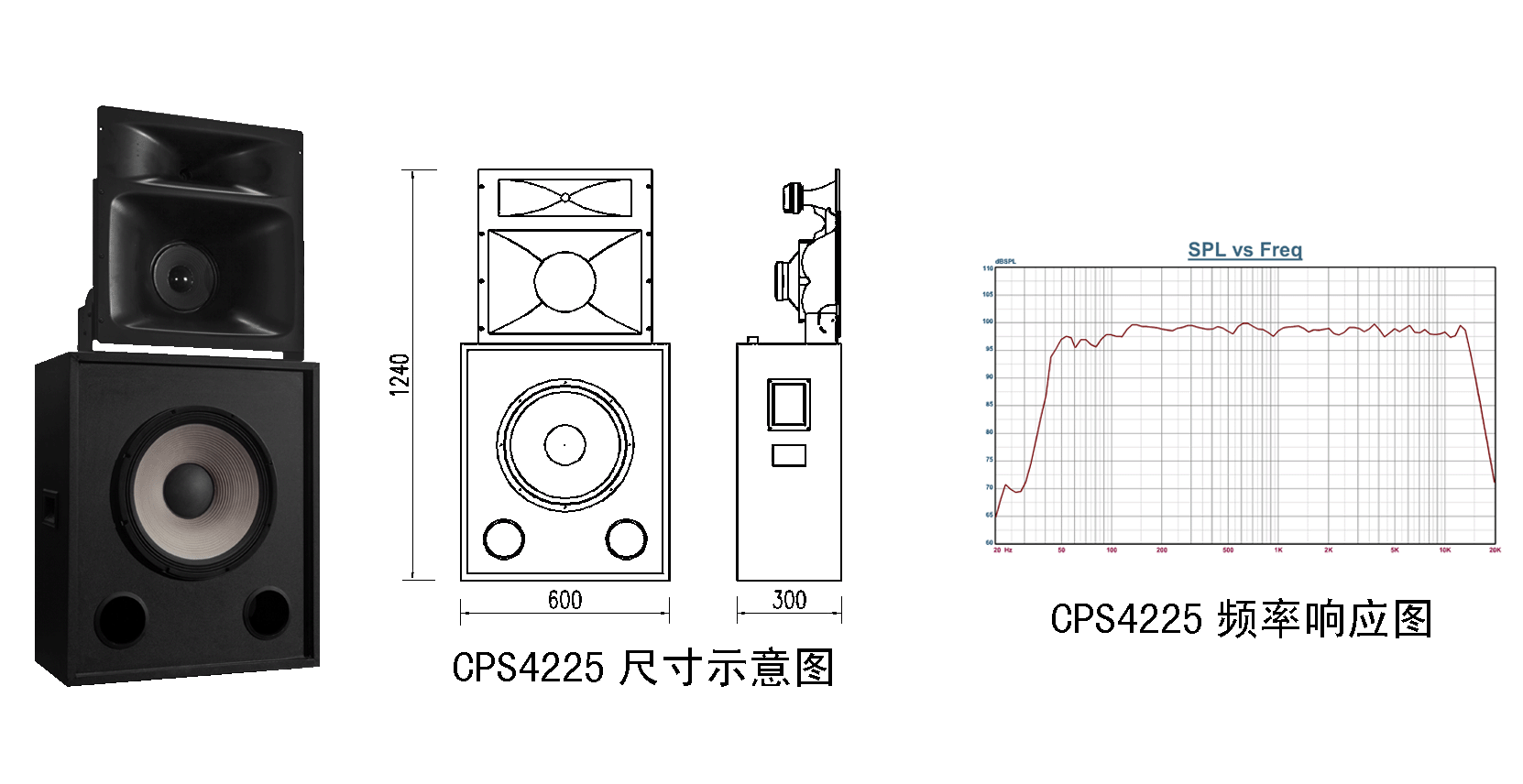

Dimensions	1240mm×600mm ×300mm (H×W×D)
Net weight	35kg
