SM8672 type dichotomy frequency main speakers system

· Dichotomy frequency, two-way drive screen main channel movie speaker system
· Level covers Angle ±45 °, vertical covers Angle ±20 °
· low-distortion sound waves guide tube, to guarantee tone quality plump
· Sets up a built-in power prescaler
· Thin type. Installation is simple and convenient
· Projecting distance: 15m~20m

SM8672 is a thin speaker system with a power prescaler built in. It is perfect for medium and small sized digital stereo movie halls with projecting distance between 15m and 20m. The bass system is specially designed for the extension of digital movie low frequency response. It adopts the high efficiency, high power PW1501 low-pitch unit, precision and phase inversion design and close coupling of the 2 units, which improves the sound output efficiency and enhances the frequency range. Treble parts constants of PH2317 horn and PD2113 driver. The system’s high and low pitch units both are set in the direct radiation bass reflex. The drive unit adopts phase equilibrium network, which can make the horn and drive with flat frequency cohesion and stable working condition.

Ttechnical parameter
SM8672
Frequency response
40-16KHz(-6dB)
Coverage angles
90°×40°(H×V)
Directivity factor(Q)
10
Directivity index
10dB

Woffer
tweeter
Unit model
2×PW1501
 PD2113&PH2317
transducer
Two Φ 381 mm high efficiency low frequency speakers, Φ 100 mm KAPTON skeleton voice coil,, Φ 190mm strontium qualitative magnets.
Φ 72 mm titanium coating compression drive structure, KAPTON skeleton rectangular section copper coated aluminium wire voice coil,, Φ 156 mm strontium qualitative magnets.
Nominal impedance
Sensitivity 1w/1m
101dB
110dB
Rated Input Power
600W
150W
Maximum input power
1200W
300W
Maximum SPL
131.8dB
134.8dB
Connection
2 metal connecting terminals, the biggest standard wire can be used is 6 mm2.

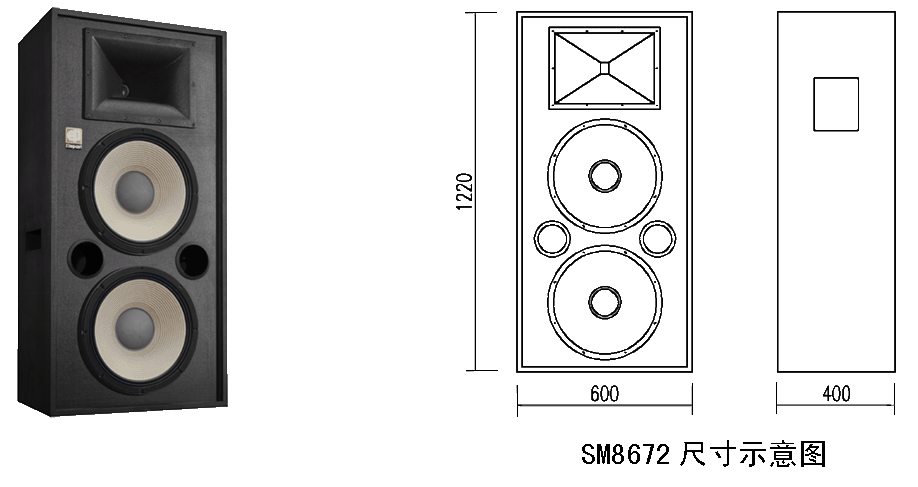

dimensions
1220mm×600mm × 400mm  (H×W×D)
Net weight
69kg

PS: [1] Maximum input power test meets IEC268-5 recommend standard, 50 Hz-20 KHz bandwidth, 6 db signal peak factor.
