· Dichotomy frequency, two-way drive screen main channel movie speaker system
· Level covers Angle ±45 °, vertical covers Angle ±20 °
· low-distortion sound waves guide tube, to guarantee tone quality plump
· Sets up a built-in power prescaler
· Thin type. Installation is simple and convenient
· Projecting distance: within 16m

SM8673 is a thin speaker system with a power prescaler built in. It is perfect for medium and small sized digital stereo movie halls with projecting distance within 16m. The bass system is specially designed for the extension of digital movie low frequency response. It adopts the high efficiency, high power PW1501 low-pitch unit and precision and phase inversion design. Treble parts constants of PH2317 horn and PD2113 driver. The system’s high and low pitch units both are set in the direct radiation bass reflex. The drive unit adopts phase equilibrium network, which can make the horn and drive with flat frequency cohesion and stable working condition.

Technical parameter	SM8673
Frequency response	40-16KHz(-6dB)
Coverage angles	90°×40° (H×V)
Directivity factor(Q)	10
Directivity index	10dB
	Woffer	tweeter
Unit model	PW1501	PD2113&PH2317
transducer	Two Φ 381 mm high efficiency low frequency speakers, Φ 100 mm KAPTON skeleton voice coil,, Φ 190mm strontium qualitative magnets.	Φ 72 mm titanium coating compression drive structure, KAPTON skeleton rectangular section copper coated aluminium wire voice coil,, Φ 156 mm strontium qualitative magnets.
Nominal impedance	8Ω
Sensitivity 1w/1m	98dB	110dB
Rated Input Power	300W	150W
Maximum input power	600W	300W
Maximum SPL	125dB	134.8dB
Connection	2 metal connecting terminals, the biggest standard wire can be used is 6 mm2.

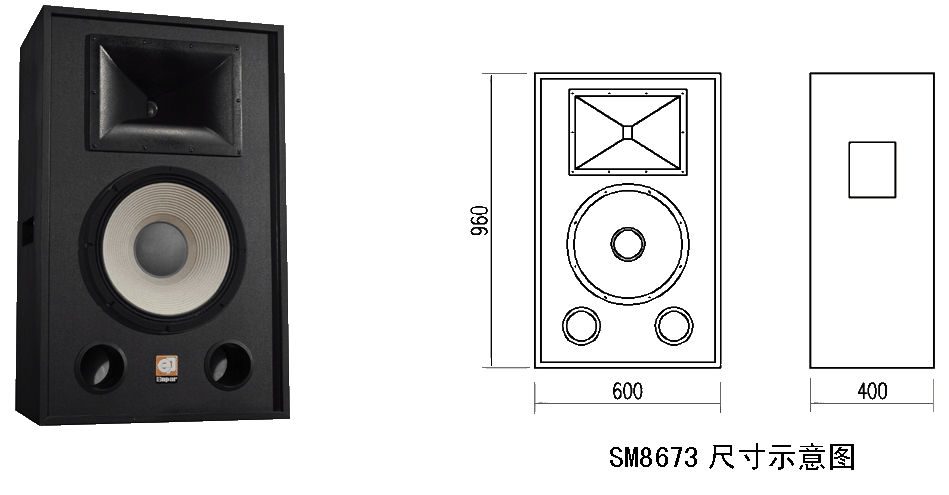

Dimensions	960mm×600mm × 400mm  (H×W×D)
Net weight	48kg

PS: [1] Maximum input power test meets IEC268-5 recommend standard, 50 Hz-20 KHz bandwidth, 6 db signal peak factor.
